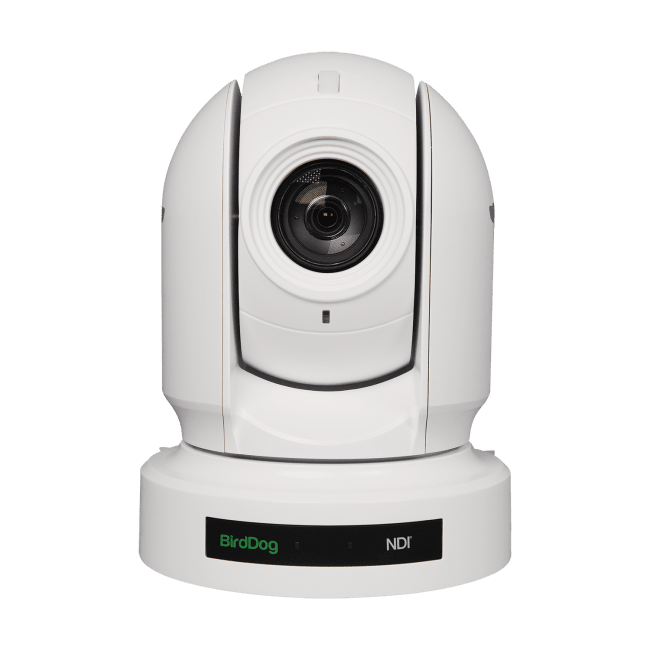

BirdDog BDP200W Eyes P200 1080P Full NDI PTZ kamera hvit

Full NDI. No compromises.

P200 PTZ camera utilizes BirdDog’s custom NDI® silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.

Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI® simultaneously. 3.5mm audio connectors allow P200 to work with BirdDog Comms, the world’s first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.

P200 has been designed for the most demanding on image quality. The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. P200 can also be used as a traditional PTZ camera with SDI, RS422, RS485, and RS232 control allowing you to move into the world of NDI® when you are ready.

Technical Specifications

CAMERA

Image Sensor 1 / 2.8 inch CMOS 2.13MP
Lens 4.3-129mm
Optical Zoom 30x
Digital Zoom 12x
Horizontal Angle of View 63.7o(W) – 2.3o(T)
ApertureF1.6(W) – F4.7 (T)
Min. Illumination Color: 0.01 lux (F1.6,AGC on,1/30s, High sensitive mode), 0.1 lux(F1.6,AGC on,1/30s, Normal sensitive mode)
Shutter Speed 1/1 – 1/10000s
Focus Auto, Push, Manual
White Balance Auto,Indoor,Outdoor,Manual,OPW ,ATW
Exposure Auto,Manual,Shutter/Iris Priority
Backlight Comensation YES

MECHANICAL

Pan Movement
Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S )
Tilt Movement
Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜50°/S)
Preset Positions
128 (Speed adjustable: Up to 150o/s)
Preset Speed
0-5 Level adjustable
Environmental
Indoor

VIDEO INTERFACE

Video Output
NDI/HDMI/SDI
Video Formats
1080P 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
Audio I/O
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)

CONTROL INTERFACE

IP PTZ Control
NDI Control (auto configuring)
Serial PTZ Control
2x RJ45: RS232/RS422/RS485
Serial Control Protocol
VISCA / Pelco D

POWER & DIMENSIONS

Operating Temperature
-10 - +50 (oC)
Operating Humidity
=< 80%
Power Input
12vDCm, PoE+ (IEEE 802.3at)
Dimensions
160x178x220mm
Weight
2.0kg

NETWORK

Video Compression
Full NDI – i-frame high quality low latency NDI for production
Network Protocol
NDI – Discovery, configuration and control
Web Control interface
Full control via Web/Mobile UI including Scene presets
