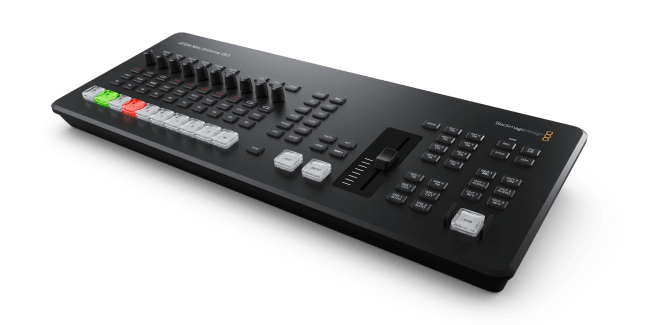

Blackmagic SWATEMMINICEXTISOG2 Videomikser ATEM Mini Extreme ISO G2

Total Video Inputs

9

Total Outputs

4

Total Aux Outputs

4

SDI Rates

1.5G, 3G

HDMI Video Inputs

8 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.

HDMI Video Outputs

3

HDMI Program Outputs

3

Total Audio Inputs

2 x XLR Combo with phantom power.
1 x BNC 32 Ch MADI digital audio.

Total Audio Outputs

1 x 6.35mm headphone jack

Timecode Connection

None

Reference Input

None

Video Input Re-Sync

On all 8 HDMI inputs and remote sources

Frame Rate and Format Converters

On all 8 HDMI inputs and remote sources

Webcam Output

2 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views

1 x HDMI
1 x Webcam

Control Panel Connection

Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator

Yes

Tally Output

On Blackmagic HDMI and remote cameras.

Ethernet

1 x 1G Ethernet for simple streaming, control panels and internet connection,
1 x 10G Ethernet connection for recording.

Computer Interface

2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power

HD Video Input Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HD Video Output Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

Rec 709

HDMI Input Resolutions from Computers

1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz

Colorspace Conversion

Hardware based real time.

SDI Auto Switching

-

Number of Mix Effects Rows

1

Direct Cross Points

10

Crosspoint Button Type

NKK Buttons

Preview Transition

1

Source Select Bus

Set using Multi Function Controls and Fairlight Audio Status Output.

Dedicated Macro Buttons

6

Transition Type Buttons

Set using Multi Function Controls and Fairlight Audio Status Output.

Transition Rate

Set using Multi Function Controls and Fairlight Audio Status Output.

Key Buttons

8

AUX Buttons

6

Fader Bar

1

Record Buttons

2

Stream Buttons

2

DSK Transition Selectors

6

Fade to Black Buttons

1 NKK button

Upstream Keyers

4

Downstream Keyers

2

Advanced Chroma Keyers

Up to 4

SuperSource

1

DVEs

2

Linear/Luma Keyers

Up to 4

Transition Keyer (Stinger/DVE)

DVE only

Color Generators

2

Control Panel

Set using Multi Function Controls and Fairlight Audio Status Output.

Routable Windows

16

Tally

Red for program and green for preview indication.

Audio Mixer

26 input x 2 channel mixer.
(8 HDMI+16MADI+XLR+Thunderbolt)
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input

Balanced stereo XLR combo connectors

Analog Input Delay

Up to 8 frames

Mic Plug In Power

+48V phantom power on XLR combo inputs

Total Streaming Sources

Up to 8

Streaming Source Format

RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting.

See user manual for data rates.

Streaming Source Setup

Mapped to inputs in ATEM Software Control Settings.

Direct Streaming

Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.

Direct Recording Video and Audio

CFExpress slot for recording
Network Recording
USB-C Recording

Video Recording

8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Audio Recording

26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels.

Switching

Program switching recorded as a DaVinci Resolve project .drp file.

Media Format

Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).

Multi View Monitoring

Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard

HD

Media Players

2

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

20 with fill and key.

Media Pool Still Image Format

200 frames in 1080 HD.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Video File Format

TGA Sequence.

Media Pool Audio File Format

WAV, MP3 and AIFF.

Control Panel

Built in control panel.

Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection

Ethernet supports 10/100/1000/10G BaseT.

Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

Control Panel Compatibility

Includes ATEM Software Control Panel.

Also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel.

Can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

Control Panel Included

ATEM Software Control Panel included free for Mac 10.14 Sonoma, Mac 10.15 Sequoia or later later and Windows 11, Windows 10 64 bit only.

Audio Mixer

58 Channel mixer.

Selectable On/Off/Audio-Follow-Video.

Level and Peak metering.

Master gain control.

6 band parametric EQ,Dynamics including Expander,Gate, Compressor and Limiter.

Camera Control

When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.

Control Panel Included

ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later. and Windows 10 or 11.

Software Updates

Using USB or Ethernet connection directly connected to macOS or Windows computers.

Includes ATEM Setup Utility.

Configuration

Set via ATEM Software Control, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
