SDI Video Inputs
1 x Micro BNC

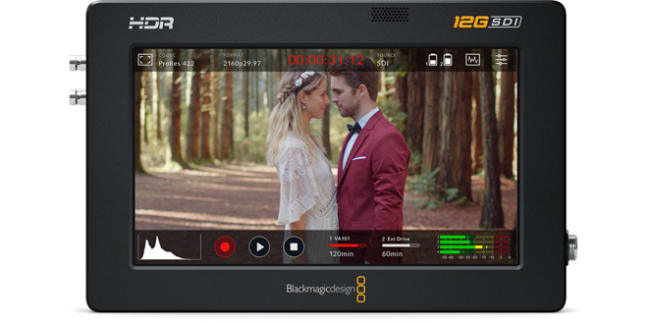

Blackmagic Video Assist 5 12G HDR
Varenummer: 504851
Produktnummer: HYPERD-AVIDA12-5HDR
EAN: 9338716006421
inkl. mva.
Blackmagic Video Assist 5” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 5 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. The built in SD card recorder save files in broadcast quality 10‑bit 4:2:2 ProRes or DNx formats. The files are all standard, so you can start editing immediately without having to convert them!
Price
kr 8.800
Connections
SDI Video Outputs
1 x Micro BNC
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0a Video Inputs
1
HDMI 2.0a Video Outputs
1
Analog Audio Inputs
None, embedded audio only.
Analog Audio Outputs
1 x 3.5 mm headphone jack.
Built in Speaker
Mono
Screen Dimensions
5 inch 1920 x 1080.
Screen Brightness
2500nits
Screen Color
P3 wide color gamut
SDI Audio Inputs
16 channels embedded via 12G-SDI
SDI Audio Outputs
16 channels embedded via 12G-SDI
HDMI Audio Inputs
8 channels embedded via HDMI 2.0a
HDMI Audio Outputs
8 channels embedded via HDMI 2.0a
Remote Control
None
SD Interface
1 x UHS-II SD slot.
Storage Type
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface
1 x USB Type‑C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.
| Monitor | |
|---|---|
| Størrelse | 5.0 tommer |
| Bruksområde | Kamera |
| Egenskaper | |
|---|---|
| UNSPSC | 45111811 |
