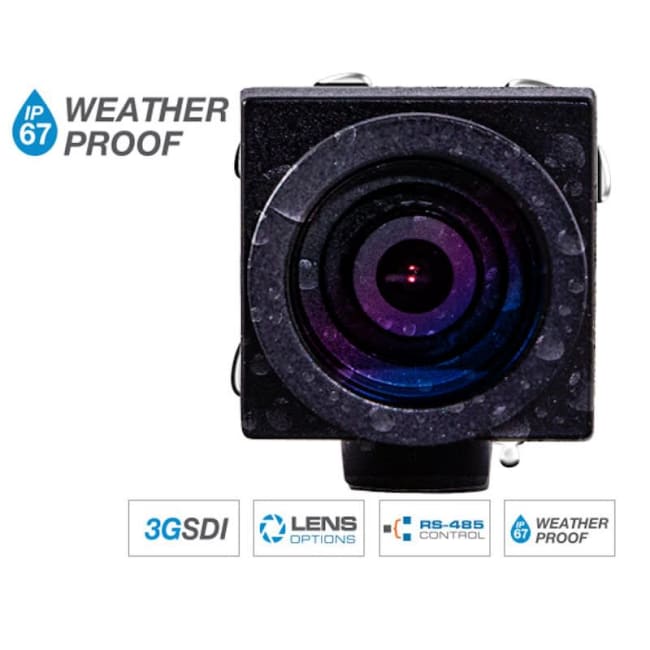

Marshall CV504-WP Minikamera med 4mm Objektiv 3G-SDI IP67

The CV504-WP delivers exceptional 10 bit 4:2:2 video performance from a durable aluminum alloy body through weatherproof breakout cable and flexible interchangeable lenses. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability.

New Sony 1/2.8" (6.46mm) Solid-State Image Sensors

The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.


Interchangeable M12 Lenses

Marshall CV504 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application..


Durable, Flexible, Powerful

The durable all-weather CV504-WP body is chiseled from one block of aluminum alloy with 10-foot (3m) breakout cable. CV504-WP operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.


Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

• 2.2 Megapixel Sony sensor with square pixel array and larger pixels
• Interchangeable M12 lens mount, comes with 4.0mm - 85° H.AOV lens
• 10-foot (3 meter) weatherproof IP67 breakout cable to BNC, RS485, power
• 3GSDI (10bit, 4:2:2, BT.709) reliability with remote adjust & match capability
• 1920x1080p, 1920x1080i & 1280x720p resolutions available
• Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
• Remote adjust & match via CV-RCP-V2, Camera Control Software and 3rd party sources
  such as Cyanview, Skaarhoj and more
• Power Draw: 2.64W (max 6W) with 7~15V flexibility

Applications:

The Micro CV504-WP is suitable for use in outdoor 3GSDI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.
