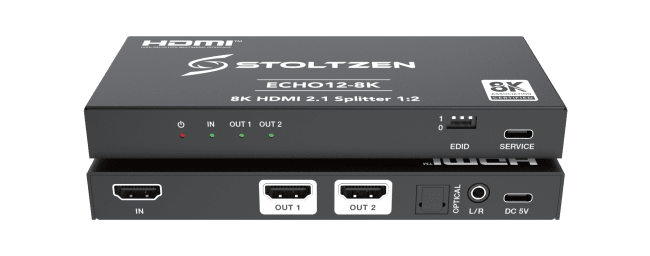

Stolzen ECHO12-8K Videosplitter/distribusjon HDMI Splitter 1:2 Downscaler

The Stoltzen ECHO12-8k is a compact and efficient HDMI 2.1 splitter that offers powerful features for both professional and personal AV setups. Capable of distributing 8K video at 60Hz to multiple displays, it supports up to two HDMI outputs simultaneously with the added benefit of downscaling capabilities. This makes it an ideal solution for environments that require splitting the HDMI signal to both high-resolution 8K displays and lower-resolution projectors, All while maintaining top-notch image quality.

Small and neat 1x2 HDMI 2.1 Splitter

• Max resolution 8K@60Hz
• Compatible with HDCP 2.3
• Controllable or automatic EDID

Key Features

• 1x2 HDMI Splitter: Split a single HDMI input to two HDMI outputs, perfect for distributing signals to dual screens.
• Max Resolution of 8K@60Hz: Delivers high-quality 8K resolution at 60Hz, providing stunning visuals.
• Downscaling Support: Automatically or manually scales down the signal for output to 4K/2K/1080p devices, without compromising image quality.
• HDCP 2.3 Compliance: Ensures compatibility with modern content protection standards for seamless playback.
• EDID Management: Adjustable EDID control to optimize compatibility with a wide range of display devices.
• Pass-through CEC: Ensures HDMI devices can communicate and control each other via the CEC (Consumer Electronics Control) feature.
• Color Depth Support: Supports 10-bit, 12-bit, and 8-bit color depths, delivering rich and accurate color reproduction.


EDID setting with possibility to switch off HDCP

Specifications

Input Ports    1 x HDMI
Output Ports    2 x HDMI
Max Input Resolution    8K at 60Hz (4K)
Max Output Resolution    8K at 60Hz
HDCP Compliance    HDCP 2.3
Downscaling    Yes (on some outputs)
CEC Support    Pass-through
Color Depth Support    10-bit, 12-bit, 8-bit
HDMI Version    HDMI 2.1
Material    Aluminium
Product Series    ECHO
Dimensions    Compact size 145mm x 68mm x 17mm
Weight    Lightweight
Color    Black
